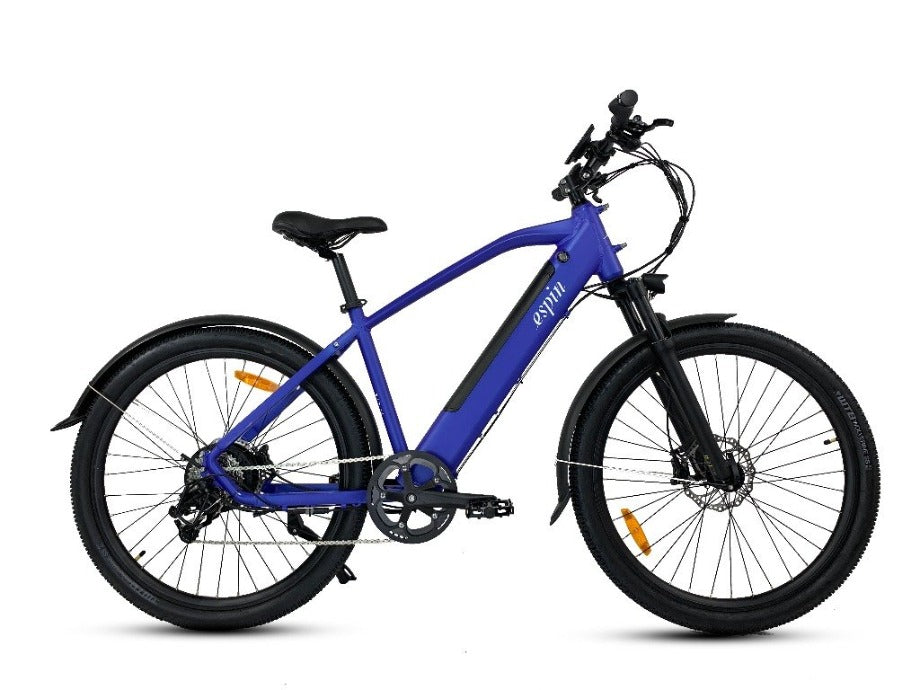

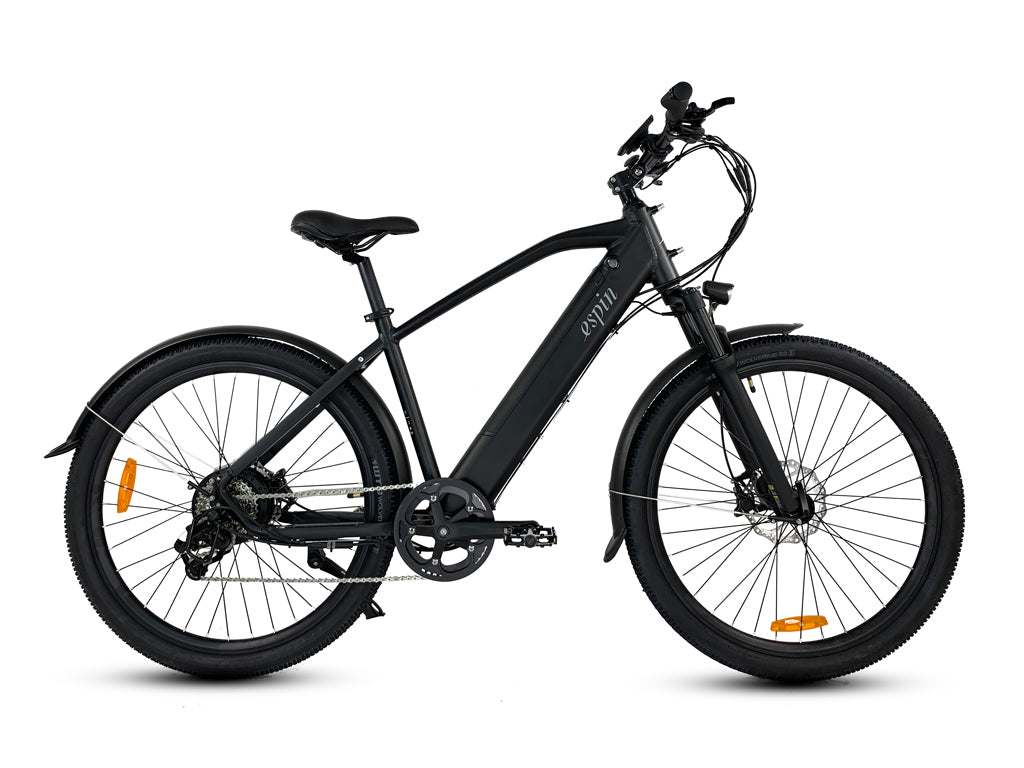

The Freedom Machine
A powerful motor and a 48V/14Ah battery (672 watt hours) that range up to 50 miles to take on those hills like riding a magic carpet.

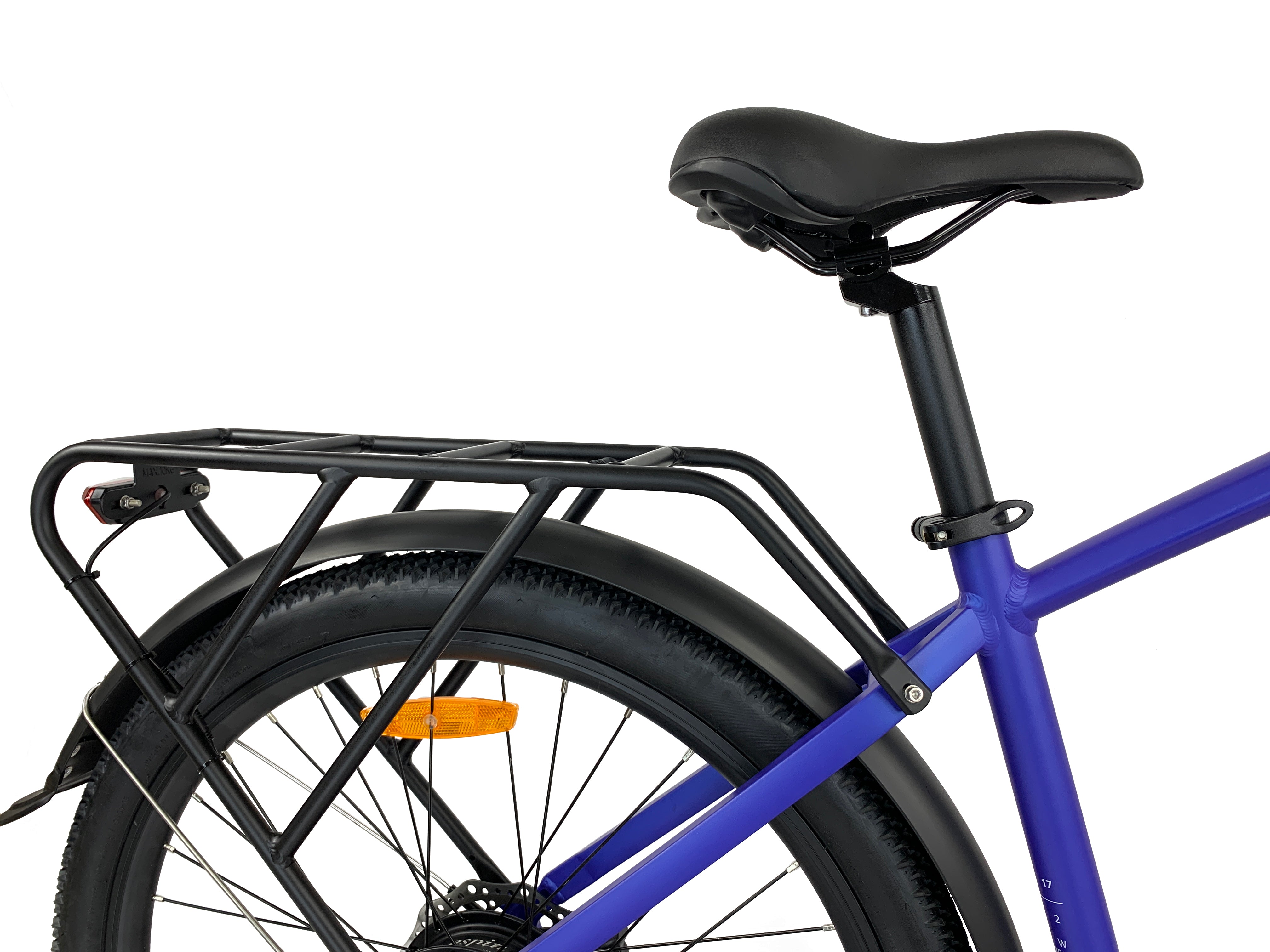

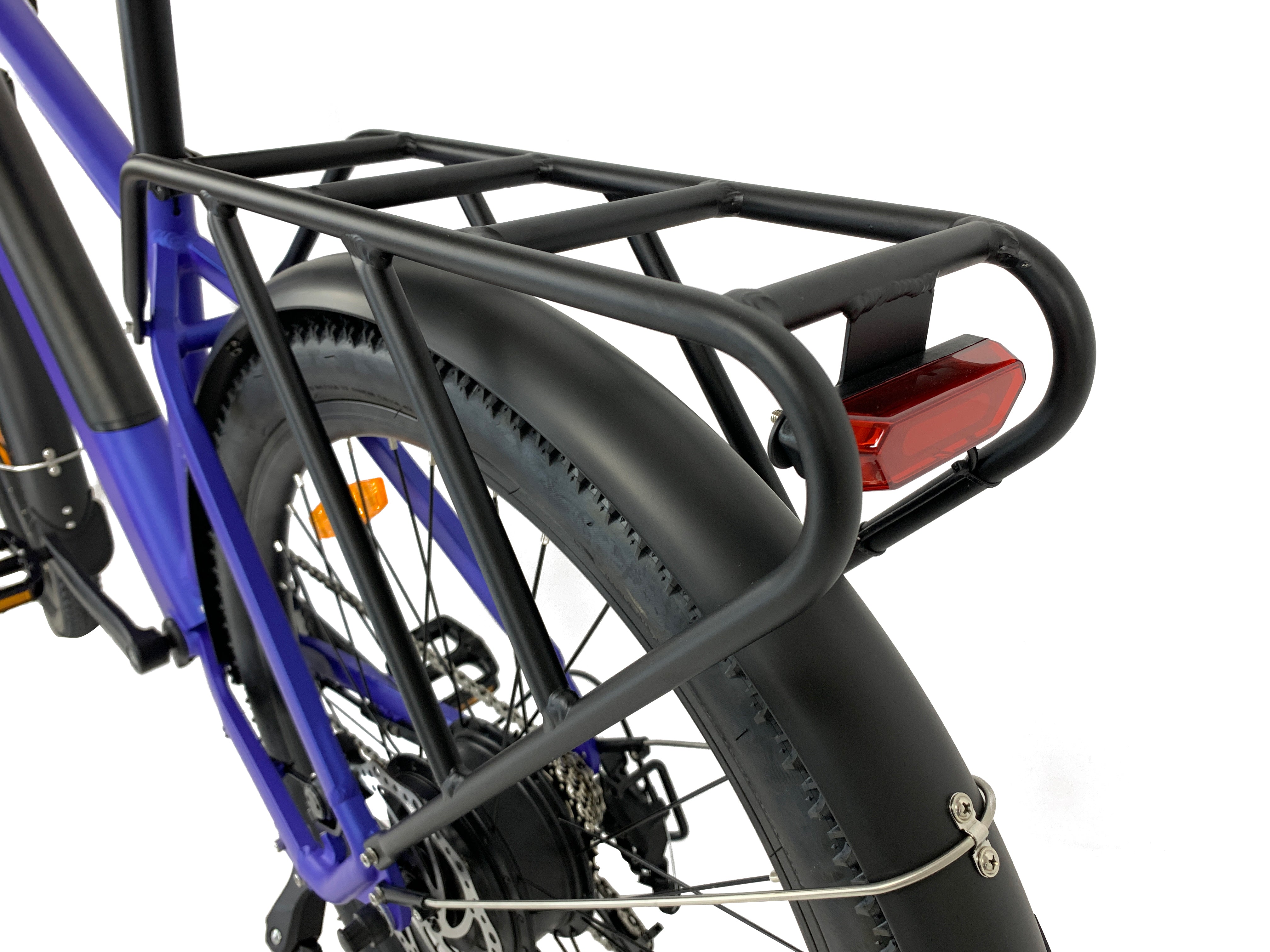

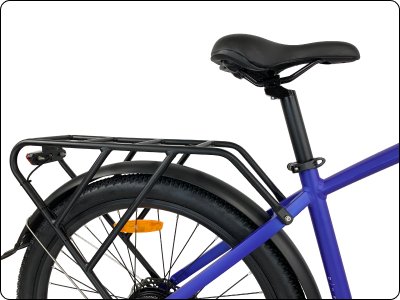

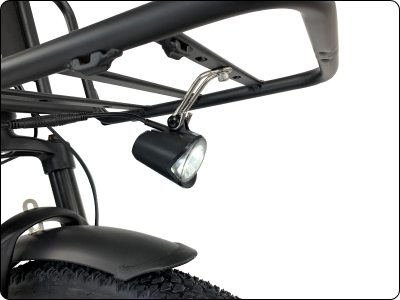

Equipped with both pedal-assist and a thumb throttle that activates 500 watts of on demand energy, giving you the perfect riding experience across any terrain. Bright LED head and tail lights keep you riding safe under any conditions. High quality rear rack for slinging up to 55 pounds of cargo for all your needs.

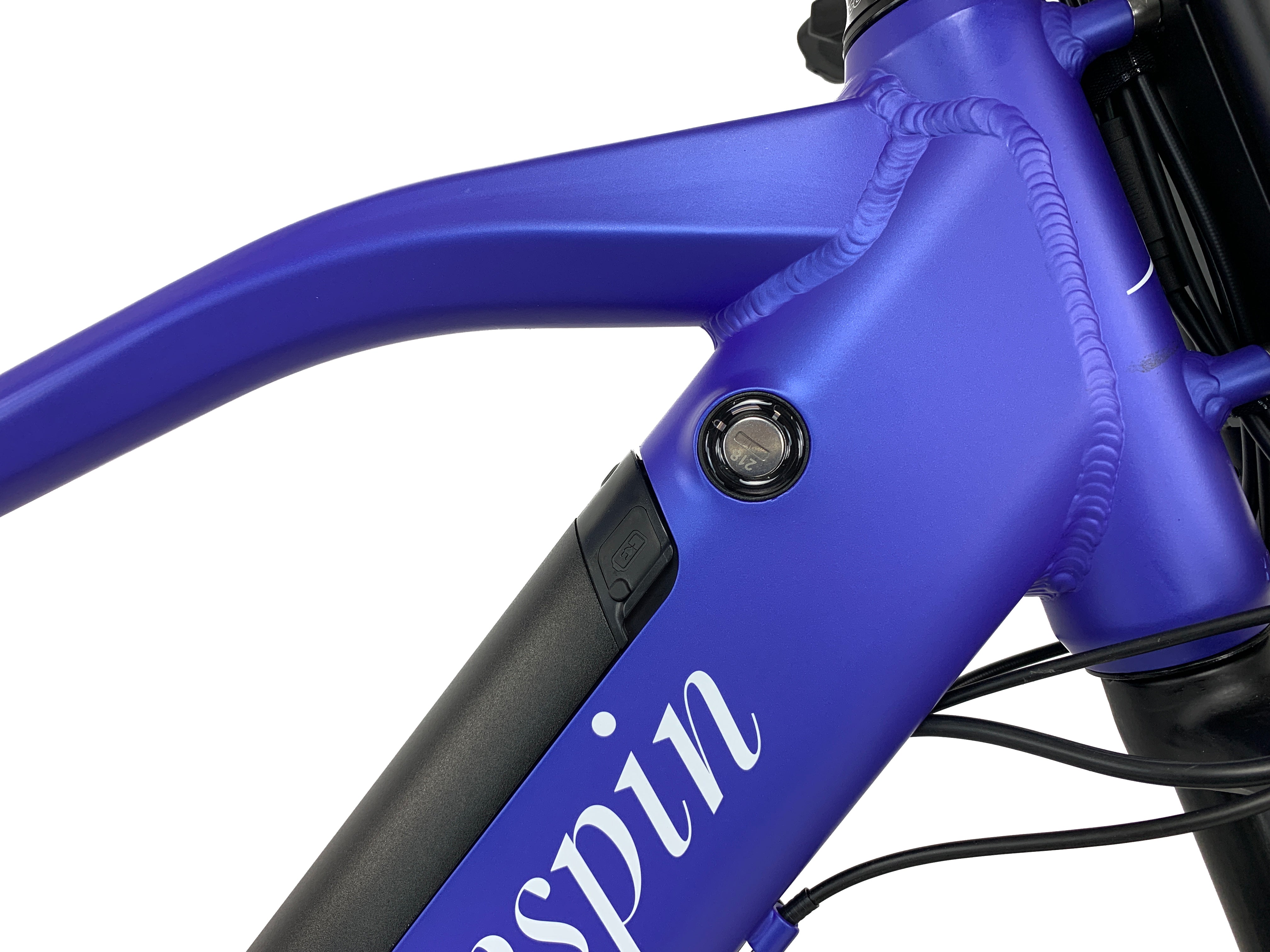

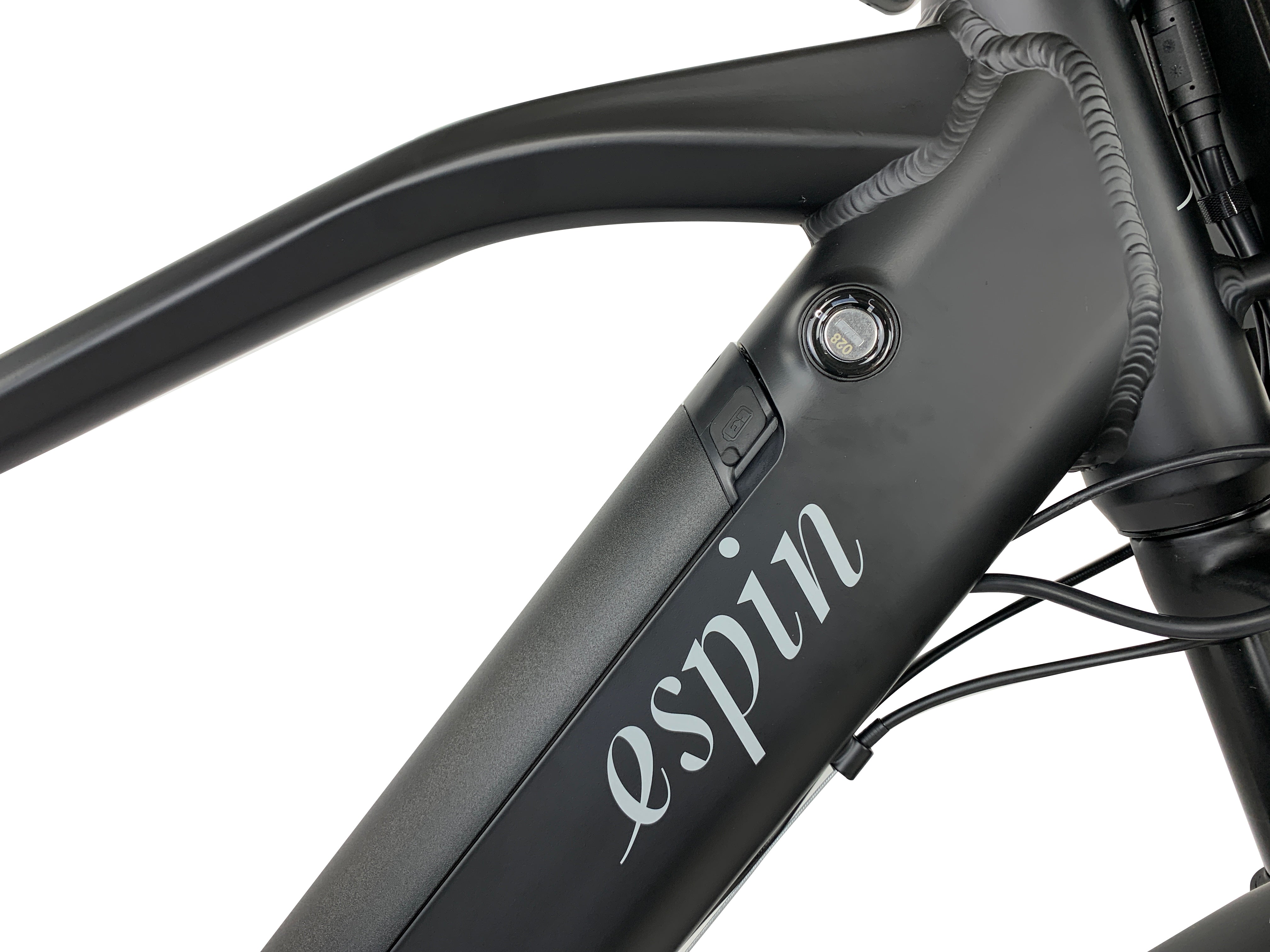

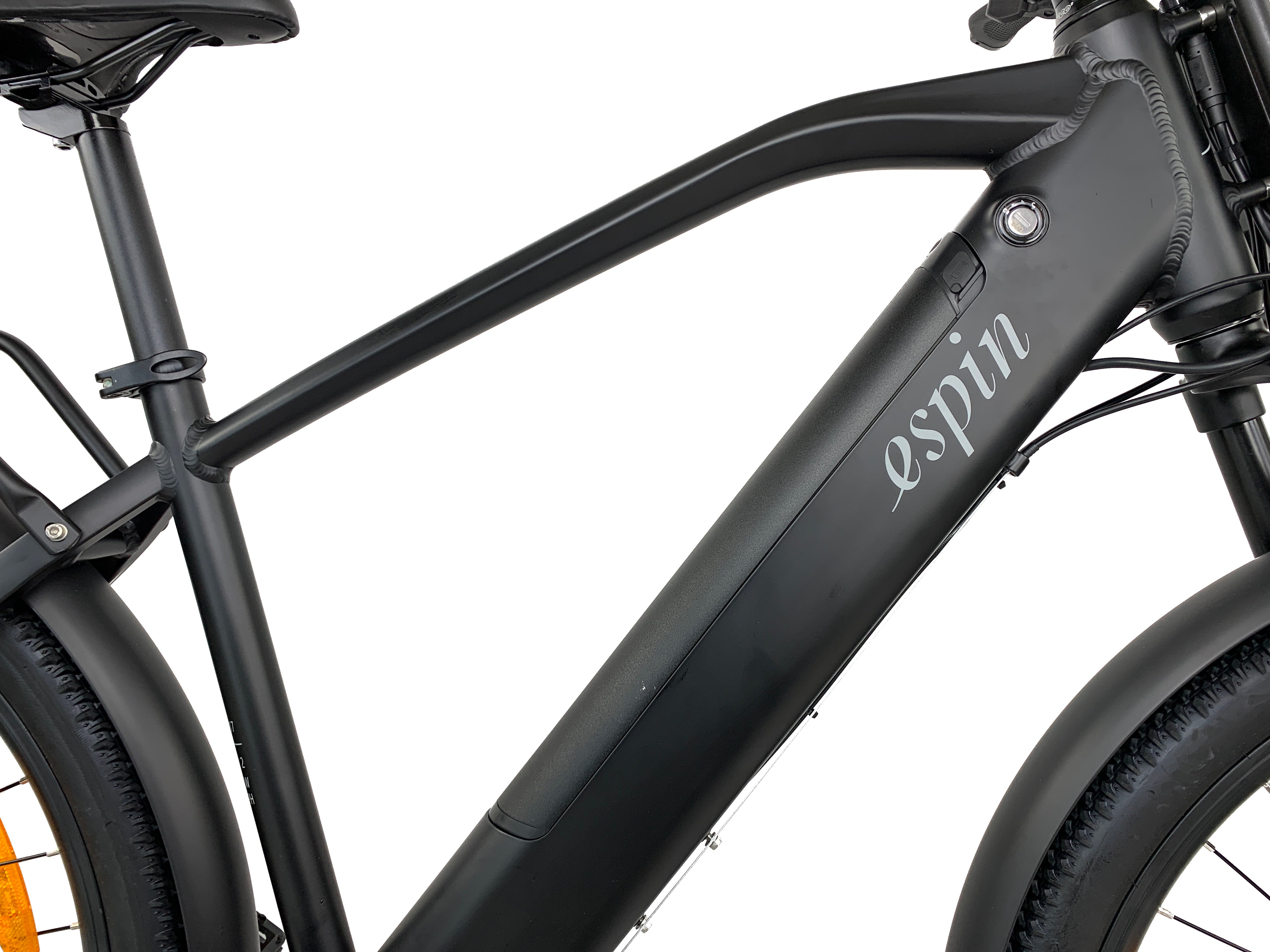

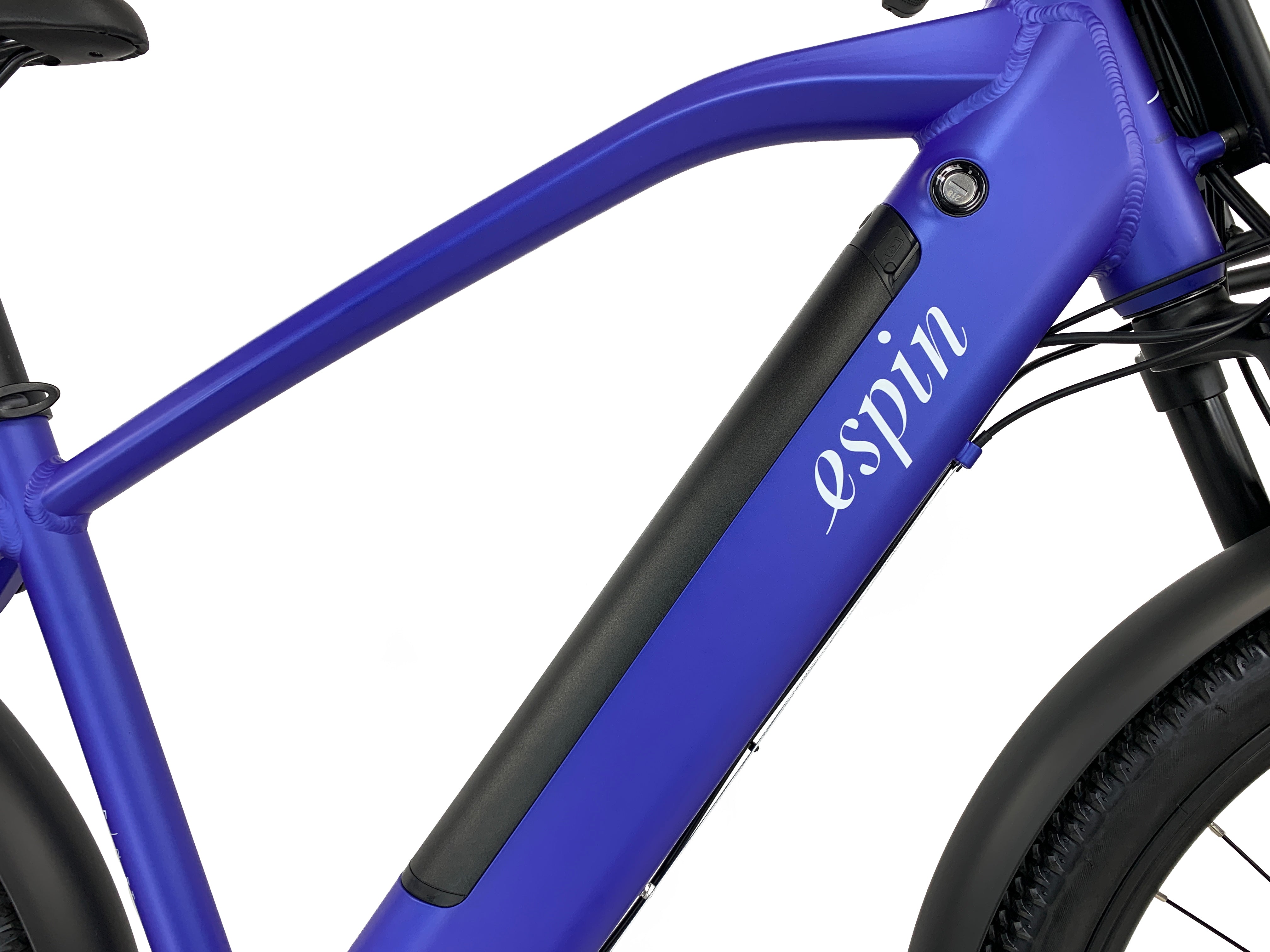

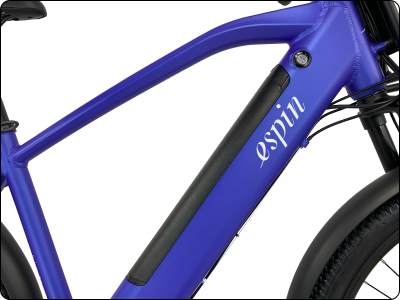

A Battery Sets You Free
Beautifully integrated into the design of your Espin, the sleek power of this 48 volt 14 ah battery (672 watt hour) gives you up to an estimated 50 miles per charge.

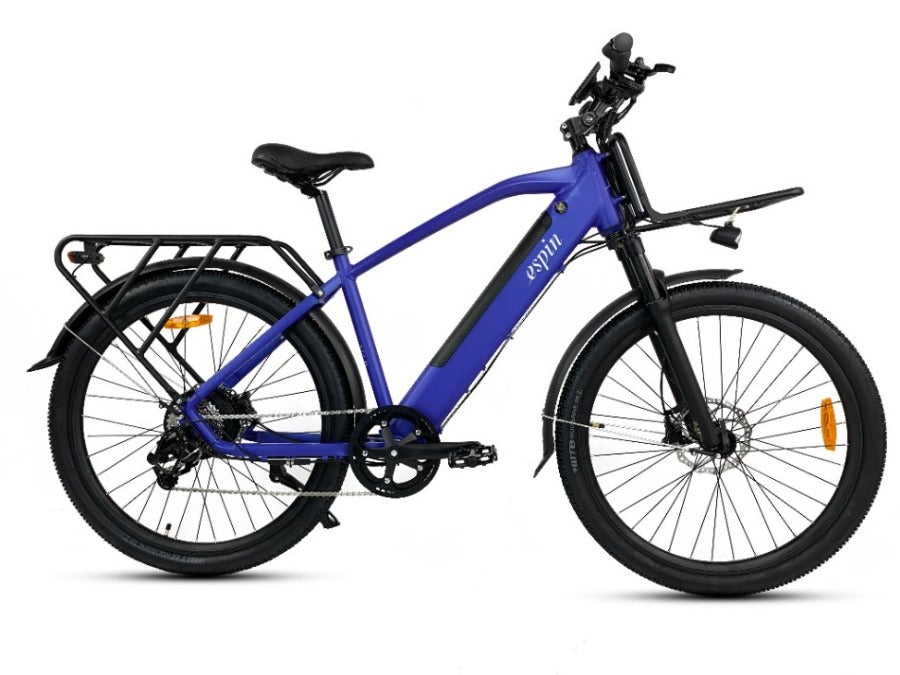

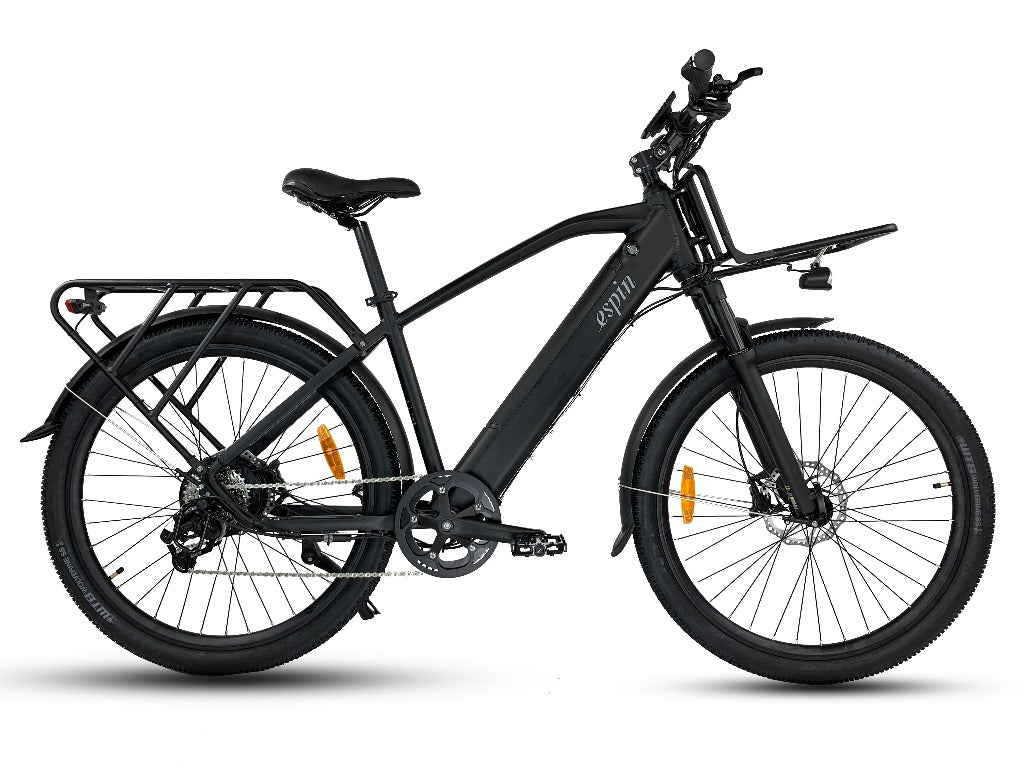

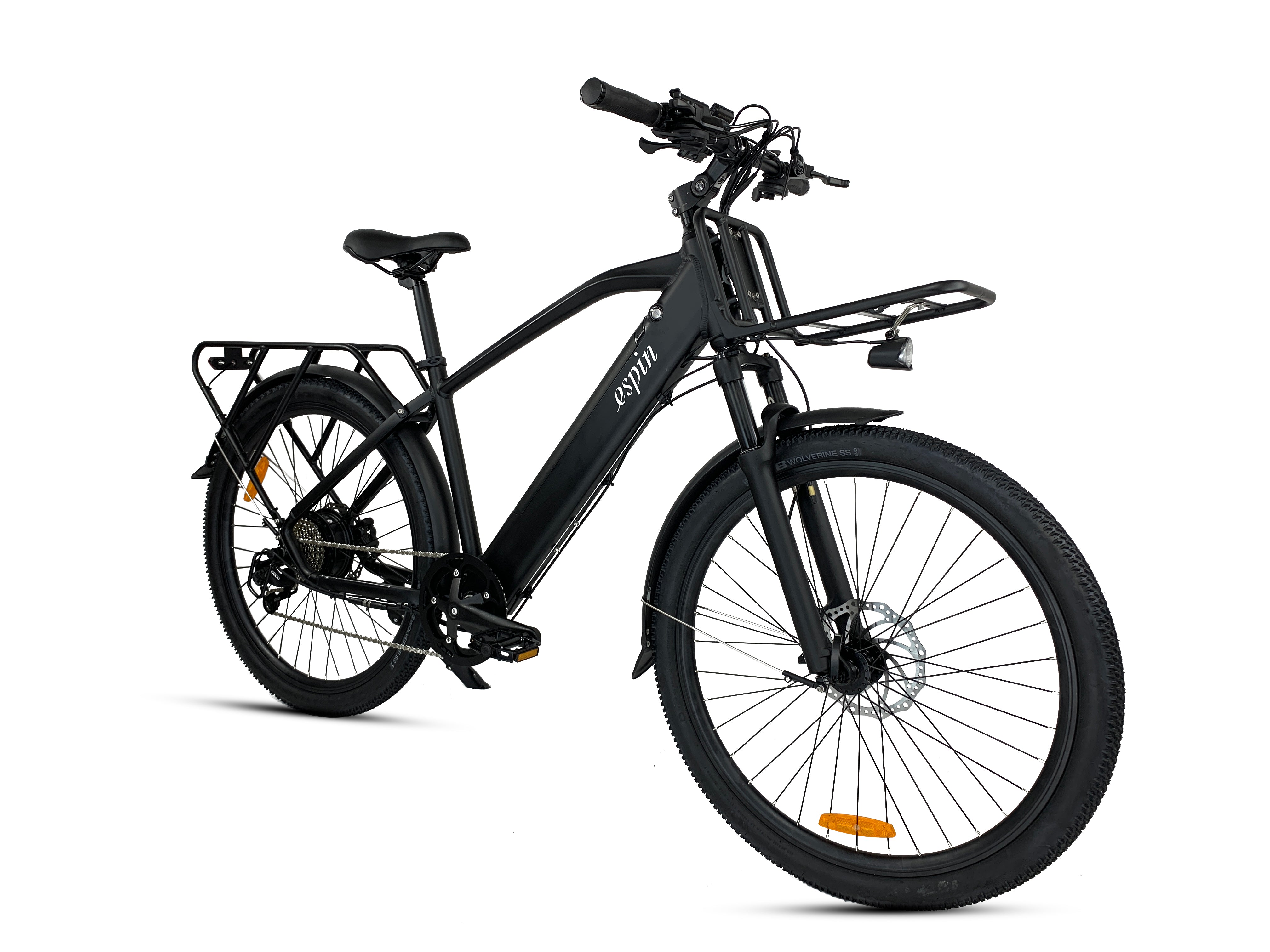

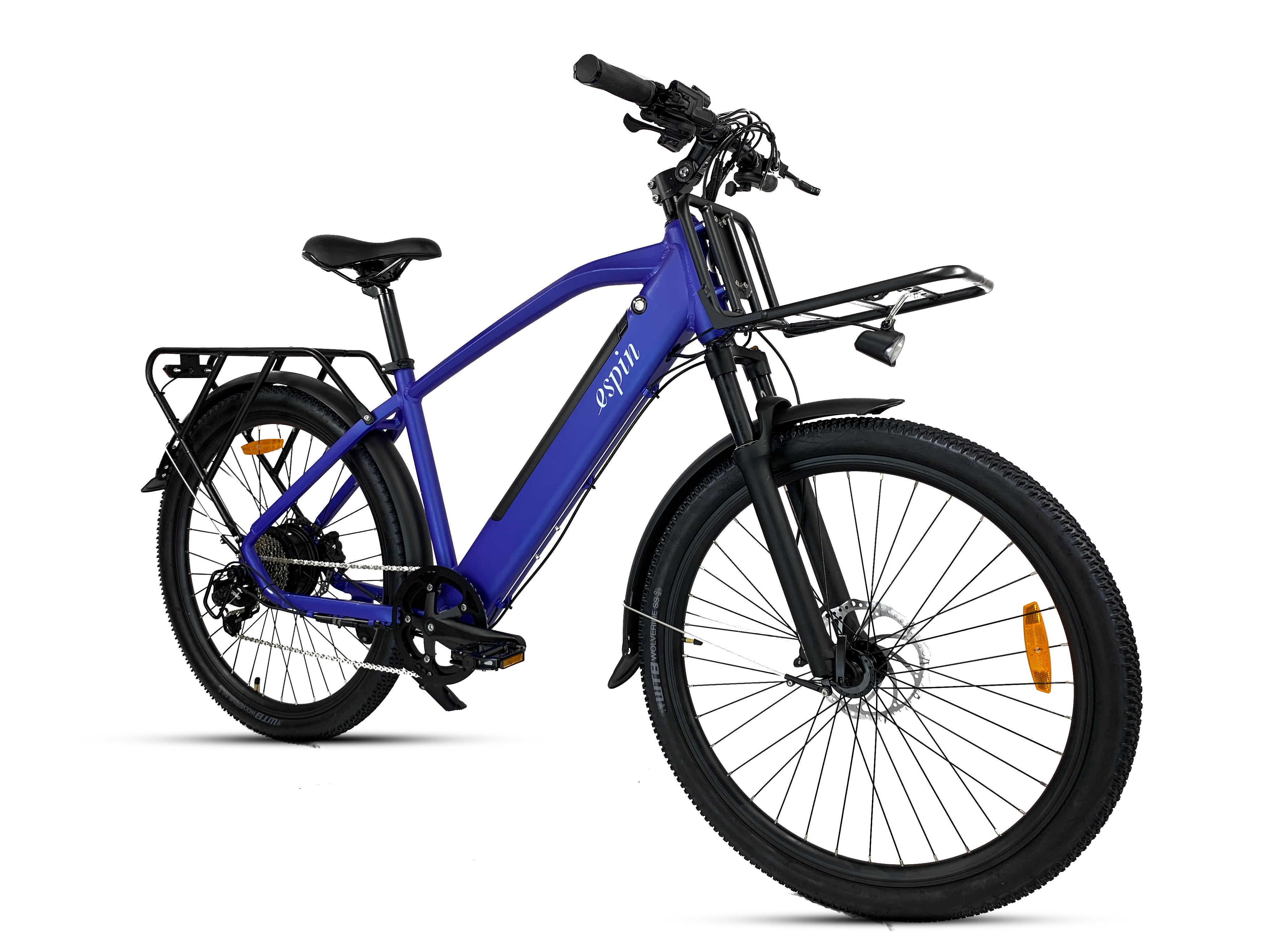

Sporting Good looks
Your Sport’s double diamond frame is accentuated by a curved top tube for a look that is sleek, modern — always ready to hit the road and race forward.

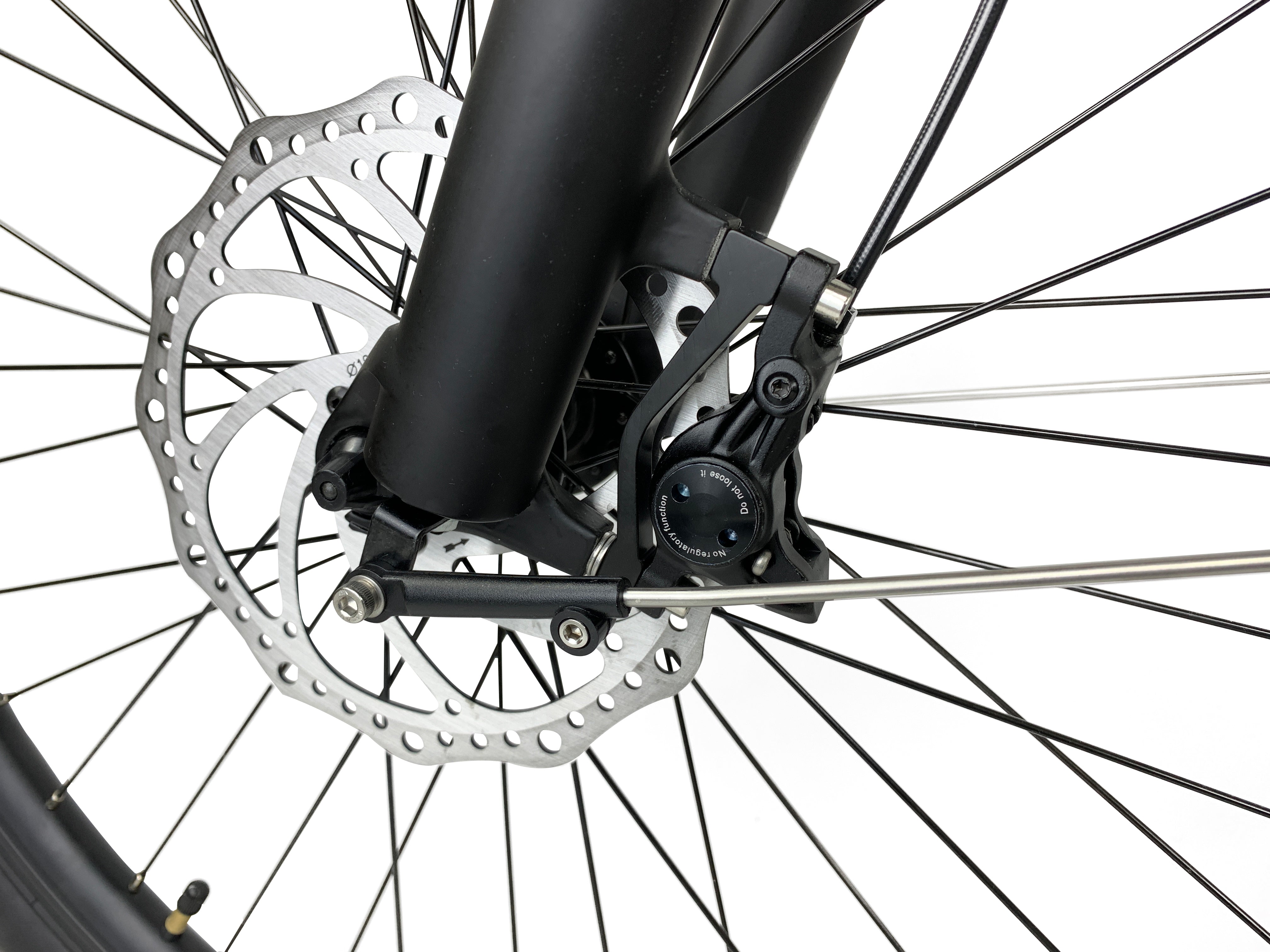

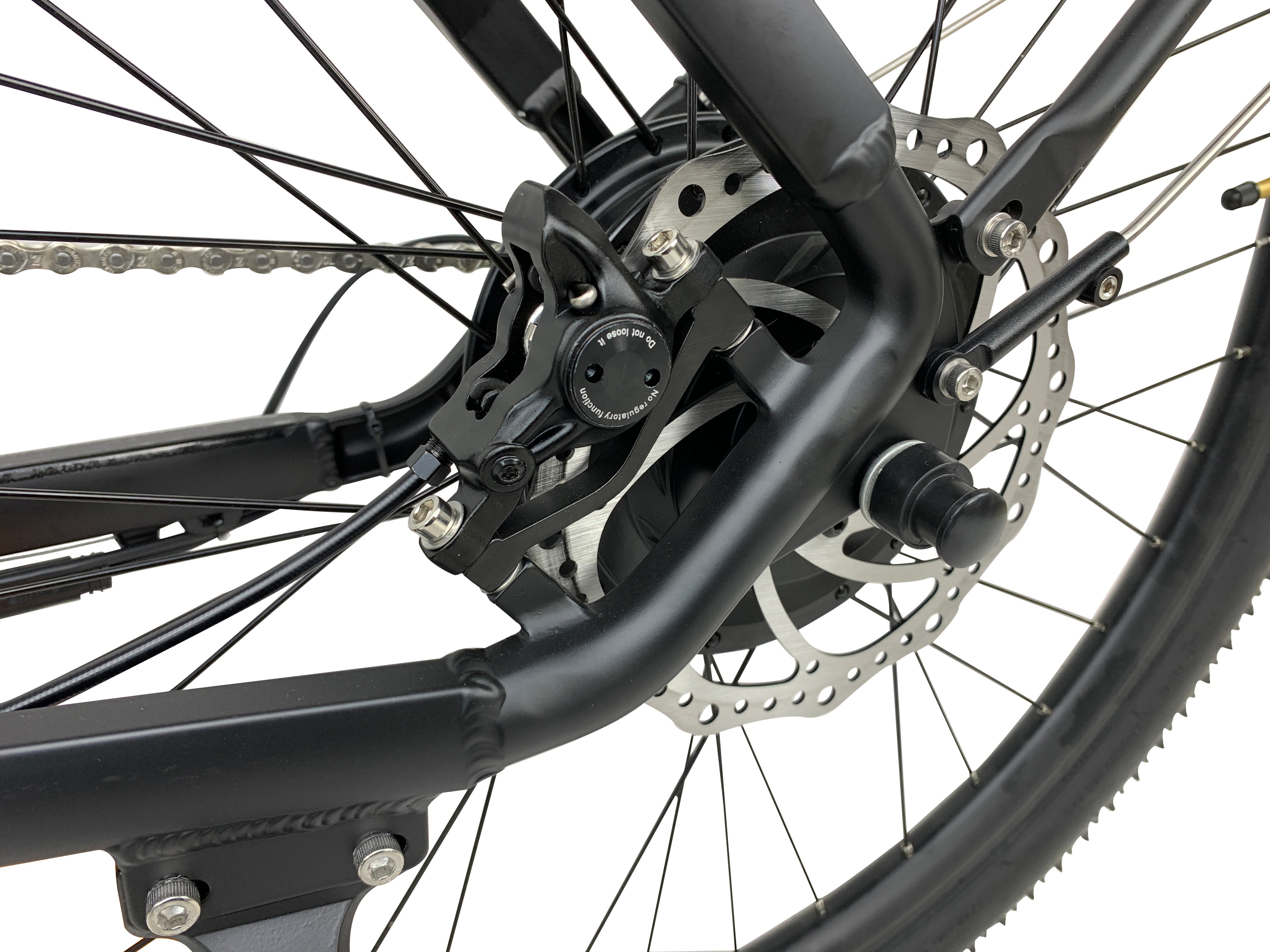

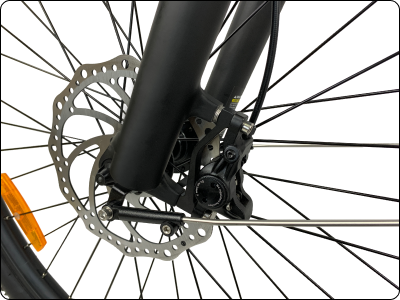

Powerful 160 mm hydraulic disc brakes bring you to a clean, quick stop — the Espin testament to control and safety.

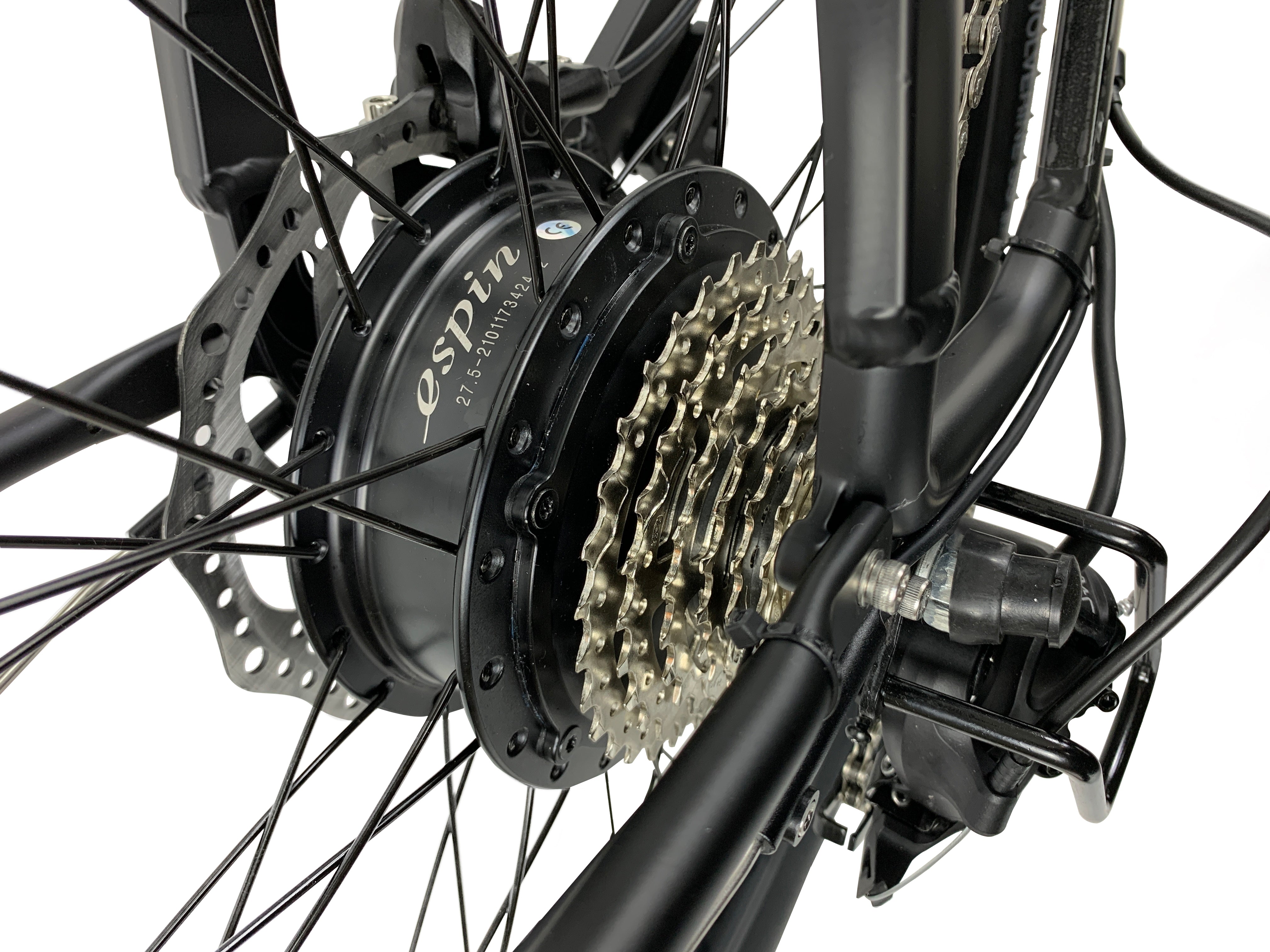

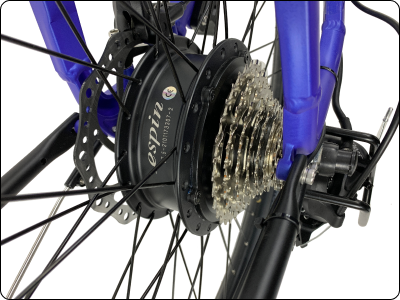

Lightning That You Pedal
The steepest inclines can’t compete with the Flow’s 500 watt Bafang Motor, the key to your Espin’s powerful, smooth propulsion.

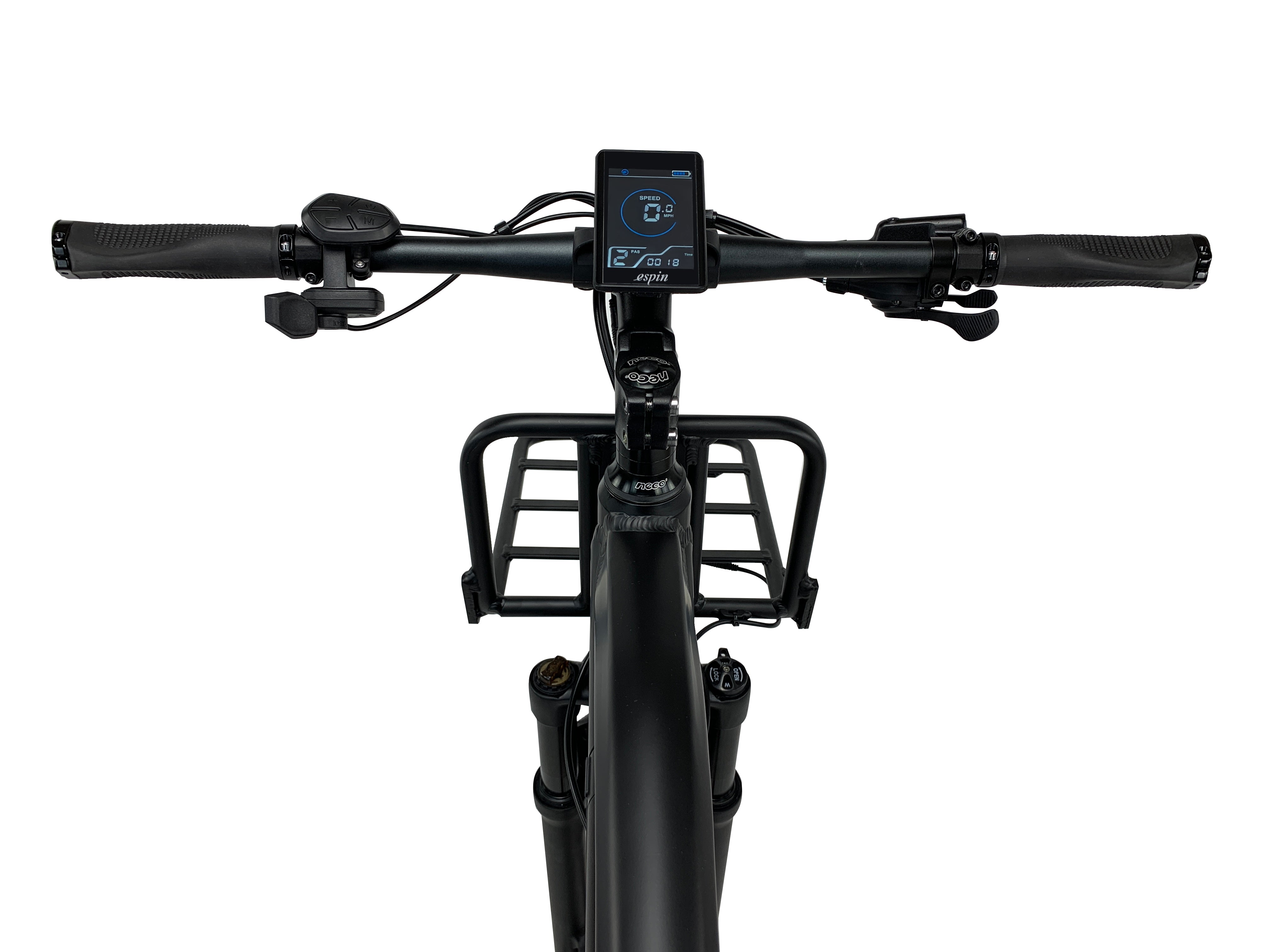

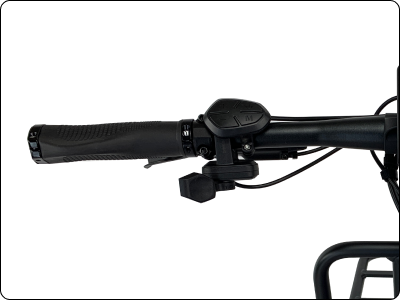

The Ultimate Turn On
Thumb the throttle to activate 500 watts of on demand energy for your Espin’s powerful motor — and the perfect riding experience across any terrain.
|Motor Type||Rear Mounted Geared Hub|
|Motor Nominal Output||500 watts|
|Motor Torque||55 Nm|
|Battery Brand||LG Cells|
|Battery Voltage||48 volts|
|Battery Amp Hours||14 ah|
|Battery Watt Hours||672 wh|
|Charge Time||6 hours|
|Estimated Min Range||30 miles|
|Estimated Max Range||50 miles|
|Display Type||ESPIN Fixed Backlit LCD|
|Readouts||Speed, Battery, Assist Level (1-5), Odometer|
|Drive Mode||Cadence Sensing Pedal Assist|
|Top Speed||Class 3|

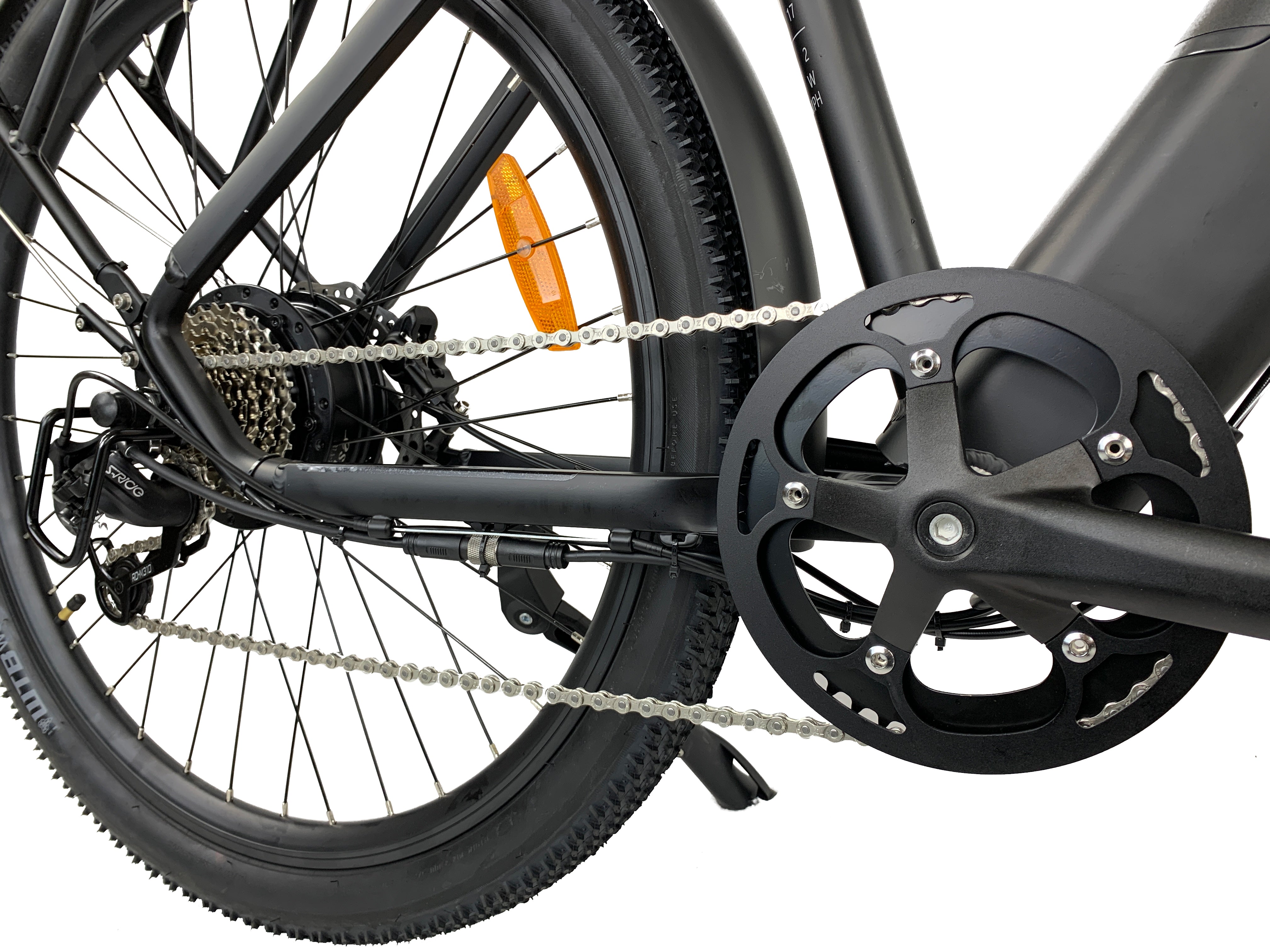

|Cranks||Alloy Cranks 170 mm, 45T Chainring with Plastic Bash Guard|
|Pedals||Wellgo Aluminum Alloy Platform|
|Gearing Details||Shimano Altus Rapid Fire Shifter (8 Speed)|
|Shifter Details||Shimano Altus Triggers|
|Brakes||Zoom Dual Piston Hydraulic Disc Brake, Front/Rear w/160mm Rotor|
|Zoom levers with Integrated Motor Cutoff|
|Saddle||Selle Royal Freeway|
|Tires||Kenda Komfort 27.5 x 1.95|
|Handlebar||Zoom Alloy Flat Handlebar|
|Fork||SR Suntour XCT|
|Rack Capacity||55 lbs (25kg)|
|Frame Type||Double Diamond High Step|
|Other||Locking Removable Battery Pack & Fenders|
|Attachment Points||Rear Rack bosses, Fender Bosses|
